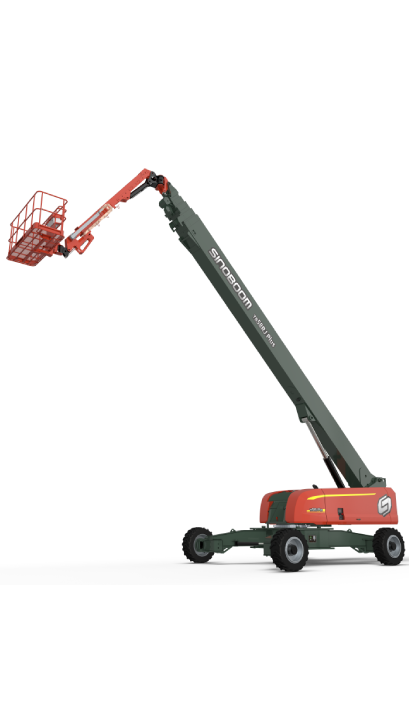

TB58RJ Plus (TB1900RJ Plus)
Engine Powered Telescopic Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
57.9m (190') -
Max Working Height
59.9m (196'6") -
Max Horizontal Extension
20.01m / 24.4m (65'8"/80'1") (Restricted / Unrestricted) -
[A] Length-Stowed
20.07m (65'10") -
[B] Width
2.49m (8'2") -
[C] Height-Stowed
3.1m (10'2") -
[D] Wheelbase
5.2m (17'1") -
Ground Clearance
0.33m (1'1") -
Platform Dimensions(L×W×H)
2.44×0.91×1.1m (96×36×43")
Performance
-
Platform Capacity
(Unrestricted)300kg (661lbs) -
Platform Capacity
(restricted)454kg (1,000lbs) -
Turntable Rotation
360° continuous -
Platform Rotation
160° -
Drive Speed-Stowed
4.5km/h (2.8mph) -
Drive Speed-Raised
0.48km/h (0.3mph) -
Gradeability
45% -
Turning Radius-Inside
7.1m (23'3.5") -
Turning Radius-Outside
9.52m (31'3") -
Turntable Tailswing
3.58m (11'9") -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WD×4WS -
Tyres-solid
445/50D710 24PR (Foam-filled)
Power
-
Power Source (Optional)
74 kw/2200 rpm/ YCF36100-T480/Yuchai/China Stage 4 -
Auxiliary Power Unit
12V DC -
Fuel Tank Capacity-Diesel
200L (44.0 gal (UK) / 52.8 gal (US)) -
Hydraulic Tank Capacity
405L (89.1 gal (UK) / 107 gal (US))
-
Weight
27,600kg (60,848 lbs) -
Standards Compliance
CE/EAC
Standard features
- Proportional control with 3 joysticks
- 7-in display screen
- 4WD x 4WS
- Electrical platform leveling
- Automotive-grade sleeves for all pipes
- Weighing system
- Tilt protection system
- 160° platform rotation
- Emergency stop system
- Flashing beacon
- 170° jib rotation
- Emergency lowering system
- Footswitch
- Horn & buzzer
- Fault diagnosis system
- Manual storage box
- 2.44m(8') work platform
- Foam-filled tires
- Max tilt rating to 5°
Optional features
- AC power to platform
- Platform work light
- Overhead anti-collision device
- Secondary guarding device
- Telematics-ready connector
