HOME>PRODUCTS>Telescopic Boom Lift>TB38J Plus (TB1260J Plus)

TB38J Plus (TB1260J Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    38.4m (126')

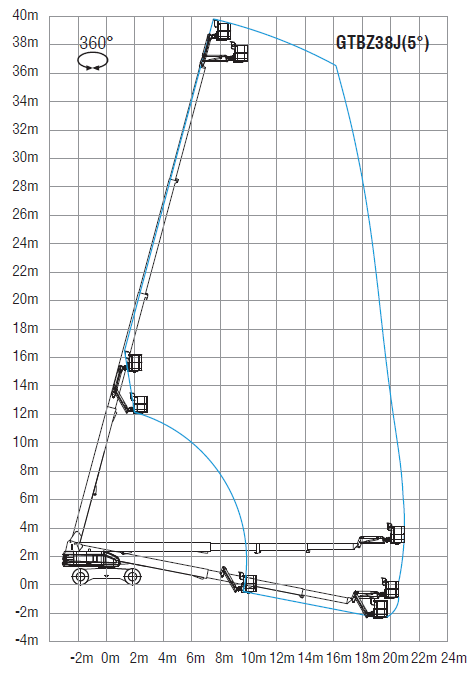

  • Max Working Height

    40.4m (132'7")

  • Max Horizontal Extension

    19.5m (63'11") (Restricted) / 21m (68'11") (Unrestricted)

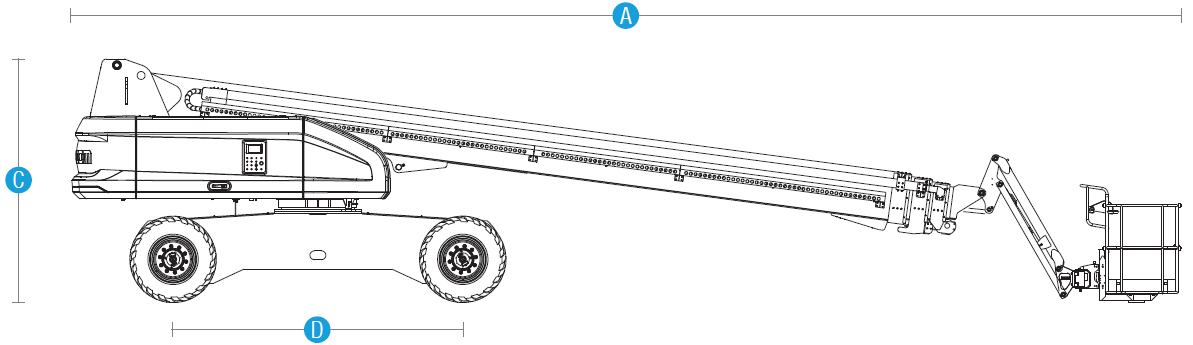

  • [A] Length-Stowed

    13.8m (45'3")

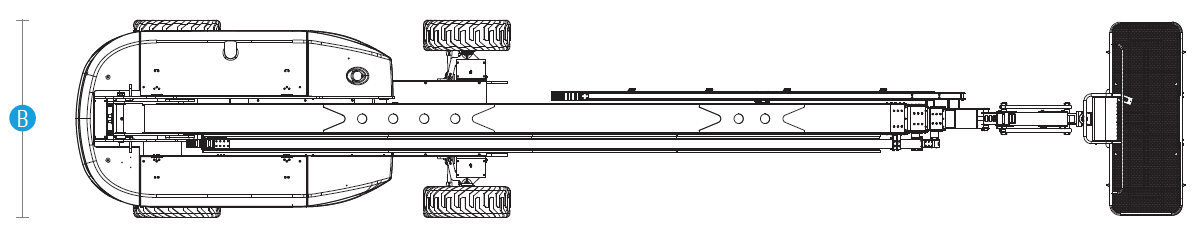

  • [B] Width

    2.49m (8'2") (Axle retracted) / 3.36m (11') (Axle extended)

  • [C] Height-Stowed

    3.1m (10'2")

  • [D] Wheelbase

    3.66m (12')

  • Ground Clearance

    0.43m (1'5")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)

  • Platform Capacity
    (restricted)

    454kg (1,000lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.4km/h (2.7mph)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    2.56m (8'4")

  • Turning Radius-Outside

    5.57m (18'3")

  • Turntable Tailswing

    1.86m (5'11")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    385/65D22.5 (Foam-filled)
Power

  • Power Source (Optional)

    54 kW/2400 rpm/ QSF2.8t3TC72/Cummins/China T3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44.0 gal (UK) / 52.8 gal (US))

  • Hydraulic Tank Capacity

    260L (57.2 gal (UK) / 68.7 gal (US))


  • Weight

    20,700kg (45,635lbs)

  • Standards Compliance

    CE/ANSI/EAC
Download Brochures
Standard features
  • 7-in display screen
  • 4WD×2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • 160° Platform rotation
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44 m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45 m (4'9") platform
  • 1.83 m(6') work platform
  • 1.83 m(6') /2.44m(8') platform with swinging gate
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Telematics-ready connector
  • Secondary guarding device
  • Overhead anti-collision device
