HOME>PRODUCTS>Telescopic Boom Lift>TB28J Plus (TB910J Plus)

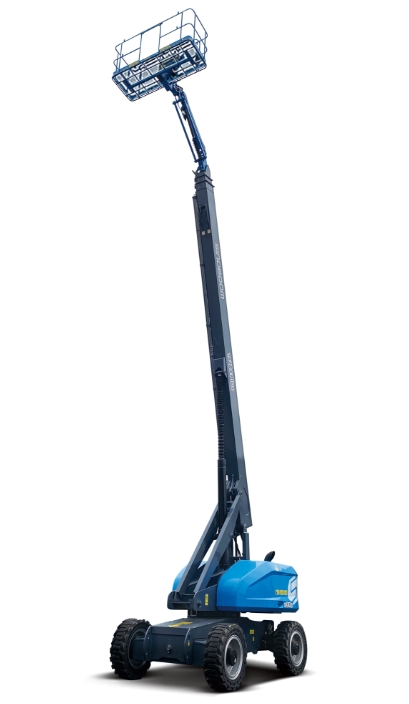

TB28J Plus (TB910J Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Precision Performance

    The upper control box is equipped with 3 full-proportional handles for gradual control of boom lifting, telescoping, turntable rotation and driving speed. Operate with smooth starting and stopping and precision approach to your worksite target.

  • Intelligent Maintenance

    Industry leading 7" screen displays faults and status information, for easy reference, reducing service technician assistance. Workers can complete tasks under the remote guidance of qualified service technicians. Convenient for fleet managers to quickly access live machine and maintenance information.

  • Oscillating Function

    Both the active and inactive states have an oscillating function, allowing work to
    be performed on inclines and uneven ground.

  • High Capacity

    Plus series boom lifts holds up to 1,000 lb (restricted)/ 661lb (unrestricted), allowing you to carry up to 3 occupants plus material and tools to get your job done easily.
Dimensions

  • Max Platform Height

    27.6m (90'7")

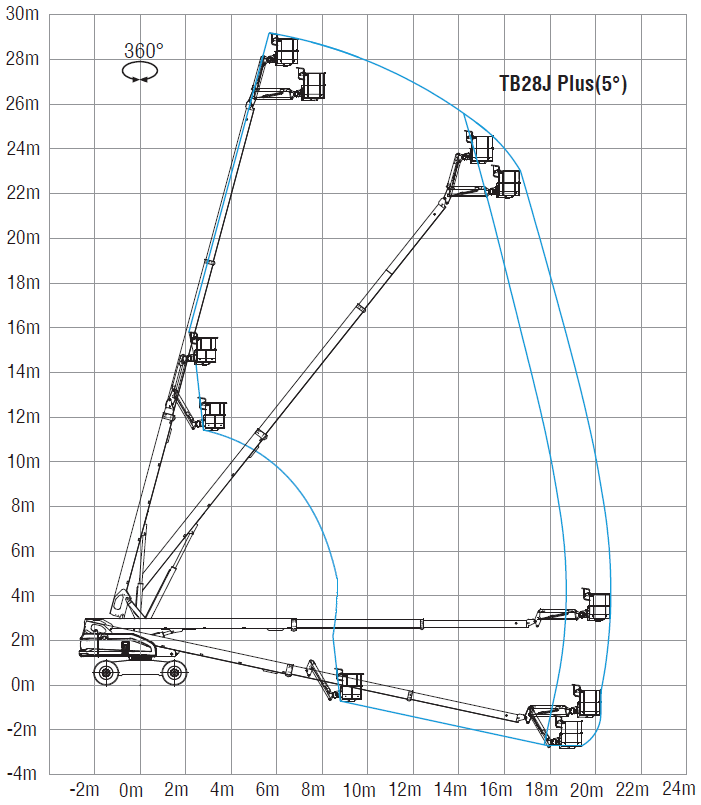

  • Max Working Height

    29.6m (97'1")

  • Max Horizontal Extension

    18m (59') (Restricted) / 19.9m (65'3") (Unrestricted)

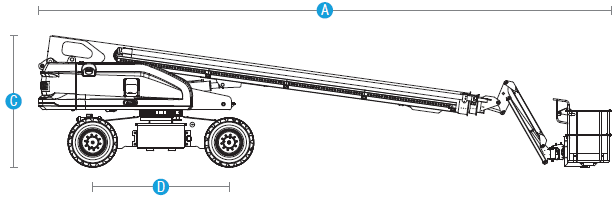

  • [A] Length-Stowed

    12.5m (41')

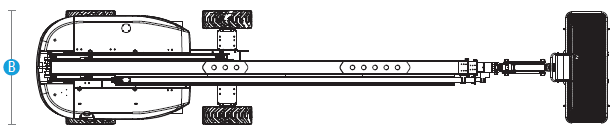

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.88m (9'5")

  • [D] Wheelbase

    3m (9'10")

  • Ground Clearance

    0.46m (1'6")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)

  • Platform Capacity
    (restricted)

    454kg (1,000lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.8km/h (3mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    3.65m (12')

  • Turning Radius-Outside

    6.91 m (22'8")

  • Turntable Tailswing

    1.45m (4'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    385/65D22.5 (Foam-filled)
Power

  • Power Source (Optional)

    54 KW /2400 rpm/ QSF2.8t3TC72/Cummins/China T3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    140L (30.8 gal (UK) /37 gal (US))

  • Hydraulic Tank Capacity

    180L (39.6gal (UK) / 47.6gal (US))


  • Weight

    17,000kg (37,479lbs)

  • Standards Compliance

    CE/ANSI/CSA/AS/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • 160° Platform rotation
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44 m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • Secondary guarding device
  • Telematics-ready connector
  • 1.83 m(6') /2.44 m(8') platform with swinging gate
  • Platform work light
  • Glazier kit(For platform with swinging gate)
  • Half mesh (For platform with swinging gate)
  • Overhead anti-collision device
