HOME>PRODUCTS>Telescopic Boom Lift>TB42RJ (TB1370RJ)

TB42RJ (TB1370RJ)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Platform Height

    41.6m (136'6")

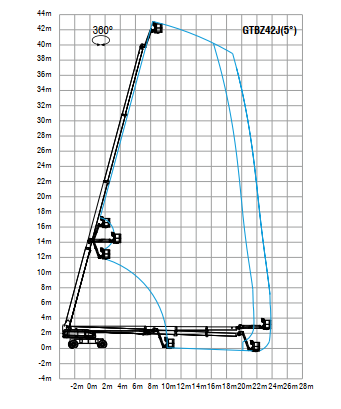

  • Max Working Height

    43.6m (143'0.5")

  • Max Horizontal Extension

    23.2m (76'1")

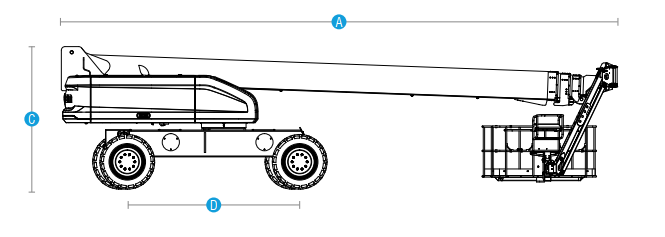

  • [A] Length-Stowed

    14.96m (49'1")

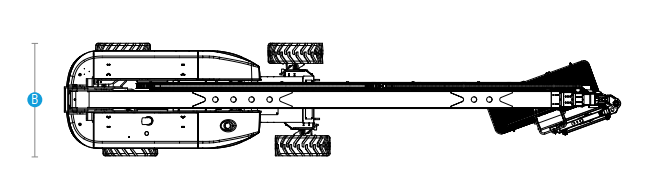

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    3.15m (10'4")

  • [D] Wheelbase

    3.81m (12'6")

  • Ground Clearance

    0.65m (2'2")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg (551lbs), 2 persons and tools

  • Platform Capacity
    (restricted)

    480kg (1,058lbs),2 persons and tools

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    180°

  • Drive Speed-Stowed

    4.4km/h / 2.7mph

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    40%

  • Turning Radius-Inside

    4.37m (14'4")

  • Turning Radius-Outside

    6.81m (22'4")

  • Turntable Tailswing

    1.68m (5'6")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    445/50D710 18PR Foam-filled tyres
Power

  • Power Source (Optional)

    [54 KW /2400 rpm/ QSF2.8t3TC72/Cummins/China T3] or
    [55.4 KW /2600 rpm/ TD2.9 L4/Deutz/EU Stage ⅢB、EPA 4]or
    [55.8 kW / 2200 rpm/YCF3075-T480/Yuchai/China T4]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44.0 gal (UK) / 52.8 gal (US))

  • Hydraulic Tank Capacity

    280L (61.6 gal (UK) / 74.0 gal (US))


  • Weight

    22,400 kg (49,383 lbs)

  • Standards Compliance

    CE/EAC/AS
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD x 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • 180° Platform rotation
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45m (4'9") platform
  • 1.83m(6') work platform
  • 1.83m(6') /2.44m(8') platform with swinging gate
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Telematics-ready connector
  • Secondary guarding device
  • Overhead anti-collision device
