HOME>PRODUCTS>Telescopic Boom Lift>TB18J Plus (TB590J Plus)

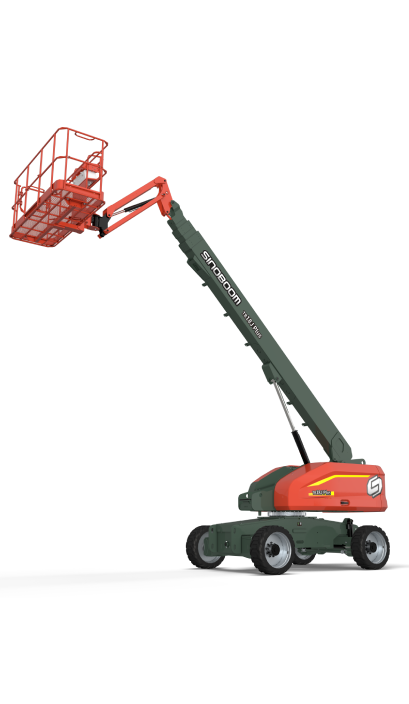

TB18J Plus (TB590J Plus)

Engine Powered Telescopic Boom Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS

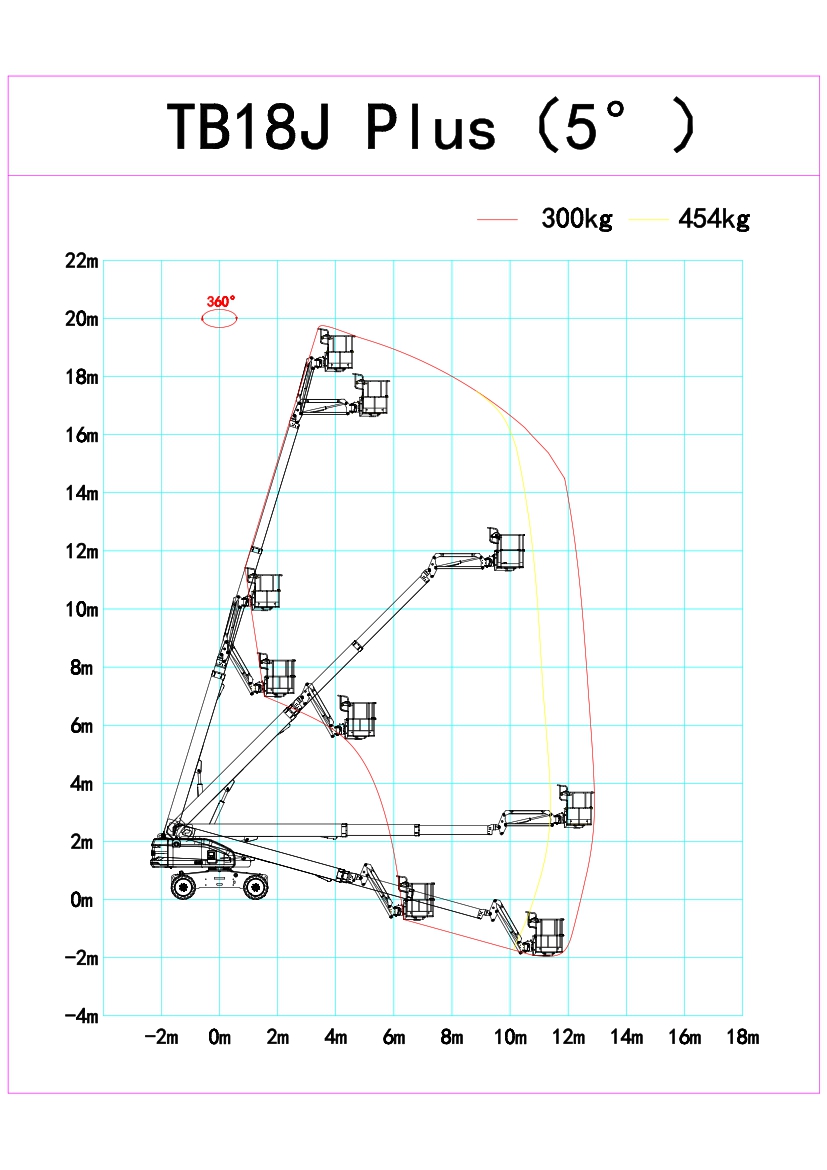

Dimensions

  • Max Platform Height

    18.4m (60'4")

  • Max Working Height

    20.4 m (66'11")

  • Max Horizontal Extension

    11.4 m / 12.9 m (37'5"/42'4")

  • [A] Length-Stowed

    9.67 m (31'8")

  • [B] Width

    2.42 m (7'11")

  • [C] Height-Stowed

    2.56 m (8'4")

  • [D] Wheelbase

    2.49 m (8'2")

  • Ground Clearance

    0.41 m (1'4")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (8'×3'×3'7")
Performance

  • Platform Capacity
    (Unrestricted)

    300kg (661lbs)

  • Platform Capacity
    (restricted)

    454kg (1,000lbs)

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.8km/h (3mph)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    45%

  • Turning Radius-Inside

    2.4m (7'11")

  • Turning Radius-Outside

    4.86 m（15'11")

  • Turntable Tailswing

    1.15 m（ 3'9")

  • Tilt Rating

    5°

  • Max Operating Noise Level

  • Drive×Steer

    4WD×2WS

  • Tyres-solid

    355/65D625 (Foam filled)
Power

  • Power Source (Optional)

    34.5 KW /3000 rpm/4TNV88-BDFLTC/ Yanmar/ China T3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    110L (24.2 gal (UK) / 29.1 gal (US))

  • Hydraulic Tank Capacity

    120L (26.4 gal (UK) / 31.7 gal (US))


  • Weight

    8,750 kg (19,290 lbs)

  • Standards Compliance

    CE/EAC
Download Brochures
Standard features
  • Active oscillating function
  • 7-in display screen
  • 4WD × 2WS
  • Proportional control with 3 joysticks
  • Automotive-grade sleeves for all pipes
  • Weighing system
  • Hydraulic platform leveling
  • 160° Platform rotation
  • Emergency stop system
  • Tilt protection system
  • Max tilt rating to 5°
  • Emergency lowering system
  • Flashing beacon
  • Horn & buzzer
  • Fault diagnosis system
  • Footswitch
  • 2.44 m(8') platform
  • Foam-filled non-marking tires
  • Manual storage box
Optional features
  • AC power to platform
  • Solid tires
  • 1.45 m (4'9") platform
  • 1.83 m(6') work platform
  • 1.83 m(6') /2.44 m(8') platform with swinging gate
  • Platform work light
  • Glazier kit (for platform with swinging gate)
  • Half mesh (for platform with swinging gate)
  • Telematics-ready connector
  • Secondary guarding device
  • Overhead anti-collision device
