HOME>PRODUCTS>Telescopic Boom Lift>TB38J (TB1260J)

TB38J (TB1260J)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Safe Range Control

    ■ Beyond the operating range, the boom automatically retracts to a safe
    range

  • Powerful off-road performance

    ■ 45% gradeability, and proprietary patented technology for anti-skid
    control to ensure a strong off-road capability

  • Smart maintenance

    ■ Smart 7" screen display, fault and status information display for easy
    viewing of machine status and fault diagnosis, parameters and settings

  • Outstanding driving flexibility

    ■ 4WD, 5 steering modes, flexible maneuvering when driving, flexible
    movement even when outrigger is extended to 3.81m(12'6") during
    operation

  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target
Dimensions

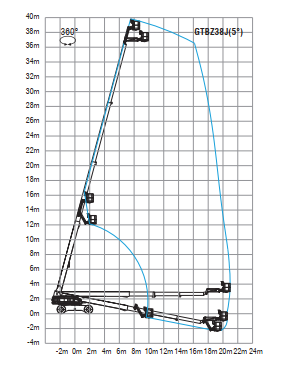

  • Max Platform Height

    38.4m (126")

  • Max Working Height

    40.4m (132'6.5")

  • Max Horizontal Extension

    19.1m (62'8")

  • [A] Length-Stowed

    14.02m (46')

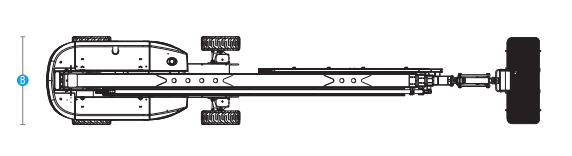

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    3.08m (10'1")

  • [D] Wheelbase

    3.66m (12')

  • Ground Clearance

    0.43m (1'5")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg(551lbs), 2 persons

  • Platform Capacity
    (restricted)

    -

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    4.4km/h / 2.7mph

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Gradeability

    40%(4WD)

  • Turning Radius-Inside

    2.56m (8'5")

  • Turning Radius-Outside

    5.57m (18'3")

  • Turntable Tailswing

    1.82m (6')

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    4WD×4WS

  • Tyres-solid

    385/65-24/10 Solid
Power

  • Power Source (Optional)

    [Cummins QSF2.8t3TC72, 54kW, EU Stage 3A] or
    [Deutz TD2.9L4, 55.4kW, USA EPA Tier 4f]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    200L (44gal)

  • Hydraulic Tank Capacity

    200L (44gal)


  • Weight

    20,300kg(4WD) / 44,754lbs(4WD)

  • Standards Compliance

    CE
Download Brochures
Standard features
  • 7-inch screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Fault diagnosis system
  • Diverged/converged
  • Drive enable system
  • Swing-out engine
  • anti-slip system
  • 3 joysticks with variable proportional control
  • Engine restart protection
  • Patented anti-slip
  • Automotive-style all-tube protection
  • Engine malfunction automatic shutdown
  • 4-wheel brake
  • Horn and buzzer alarms
  • Engine preheating
  • Emergency brake release
  • Rotating warning lamp
  • Emergency stop system
  • 4WD
  • Tilt protection
  • Emergency lowering system
  • 4 steering modes: front wheel steering, rear wheel steering, crab steering and 4-wheel steering
  • Overload sensing system
  • Max allowable inclination up to 5°
  • Telescopic axle
  • Hydraulic cooler
  • 360°continuous turntable rotation
Optional features
  • Optional 1.45m(4'9") work platform
  • Optional 1.83m(6')work platform
  • Foam-filled non-marking tyres
  • AC cable to platform
  • Hydraulic generator(3.5kW)
  • Platform Headlight
  • Overhead anti-collision device
