HOME>PRODUCTS>Telescopic Boom Lift>TB28J (TB910J)

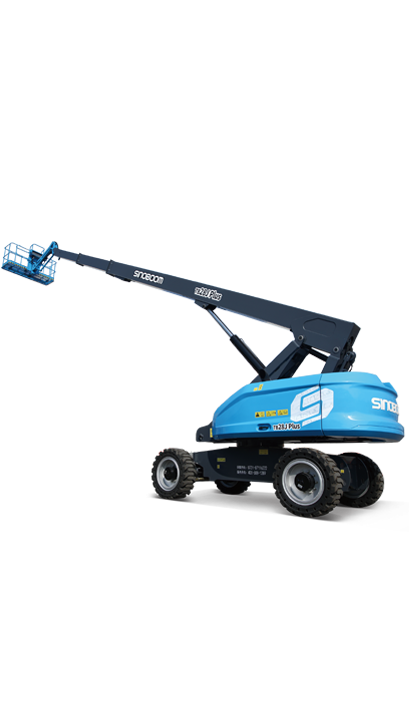

TB28J (TB910J)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • The most appropriated working height

    ■ The working heights are 28m(91'10") and 30m(98'5"), 2m(6'7") higher
    than the industry standard; The most appropriated working height, first
    class products: the most mature and reliable models that cover most
    construction heights

  • Precision performance

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target

  • Powerful Off-Road Performance

    ■ 45% gradeability, and proprietary patented technology for anti-skid
    control to ensure a strong off-road capability

  • Smart maintenance

    ■ Smart 7" screen display, fault and status information display for easy
    viewing of machine status and fault diagnosis, parameters and settings
Dimensions

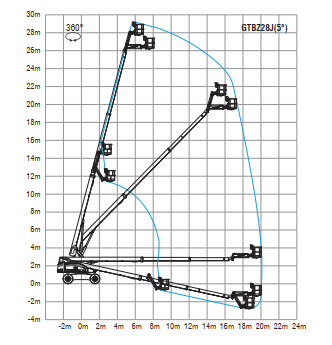

  • Max Platform Height

    27.7m (90'10.5")

  • Max Working Height

    29.7m (97'5")

  • Max Horizontal Extension

    20m (65'7.5")

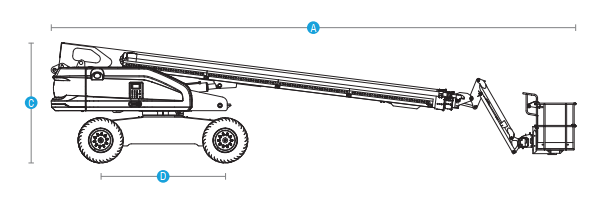

  • [A] Length-Stowed

    13.22m (43'4.5")

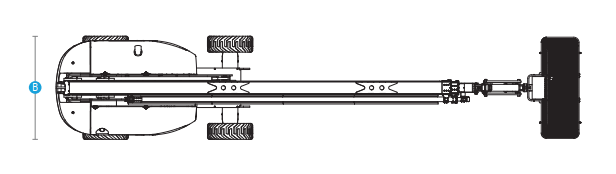

  • [B] Width

    2.49m (8'2")

  • [C] Height-Stowed

    2.88m (9'5")

  • [D] Wheelbase

    3.0m (9'10")

  • Ground Clearance

    0.41m (1'4")

  • Platform Dimensions(L×W×H)

    2.44×0.91×1.1m (96×36×43")
Performance

  • Platform Capacity
    (Unrestricted)

    250kg(551lbs), 2 persons

  • Platform Capacity
    (restricted)

    -

  • Turntable Rotation

    360°

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    5.2km/h(2WD) / 4.4km/h(4WD)
    3.2mph(2WD) / 2.7mph(4WD)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Gradeability

    30%(2WD)/45%(4WD)

  • Turning Radius-Inside

    2.44m (8')

  • Turning Radius-Outside

    5.84m (19'2")

  • Turntable Tailswing

    1.46m (4'95")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    2WD×2WS/4WD×2WS

  • Tyres-solid

    385/65-24/10(Solid tyres)
Power

  • Power Source (Optional)

    [Cummins QSF2.8t3NA60, 43kW, EU Stage 3A/EPA Tier 3] or
    [Deutz TD2.9L4, 55.4kW, USA EPA Tier 4f]

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    160L (35.2gal)

  • Hydraulic Tank Capacity

    170L (37.4gal)


  • Weight

    16581kg(2WD) / 16,671kg(4WD)
    36,555lbs(2WD) / 36,753lbs(4WD)

  • Standards Compliance

    CE/GB/ANSI/CSA
Download Brochures
Standard features
  • Platform hydraulic leveling
  • 7-inch screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Fault diagnosis system
  • Diverged/converged anti-slip system
  • Drive enable system
  • Swing-out engine
  • Patented anti-slip
  • 3 joysticks with variable proportional control Engine restart protection
  • Foam-filled tyres
  • Automotive-style all-tube protection
  • Engine malfunction automatic shutdown
  • 4-wheel brake
  • Horn and buzzer alarms
  • Engine preheating
  • Emergency brake release
  • Rotating warning lamp
  • Emergency stop system
  • 4WD
  • Tilt protection
  • Emergency lowering system
  • Outrigger oscillating axle
  • Overload sensing system
  • Max allowable inclination up to 5°
  • 360°continuous turntable rotation
Optional features
  • Optional 1.45m(4'9") work platform
  • Optional 1.83m(6')work platform
  • Solid tyres
  • AC cable to platform
  • Hydraulic generator(3.5kW)
  • Headlight
  • Overhead anti-collision device
  • 2WD
  • Outrigger without oscillating axle
