TB16 (TB530)

Engine Powered Telescopic Boom Lifts
Working height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • Economical and practical small and medium-sized models

    ■ The working height of 18m(7'6") and 20m(65'7") cover most operational scenarios in off-road situations

  • PRECISION PERFORMANCE

    ■ 3 joysticks with variable proportional control, boom swing, boom
    extension, turntable rotation and walking speed, smooth start and stop
    motion, accuracy in reaching the operation target

  • Powerful off-road performance

    ■ Up to 45% gradeability, and proprietary patented technology for antiskid control to ensure a strong off-road capability

  • Safe and reliable

    ■ Simple and reliable

  • SMART MAINTENANCE

    ■ Smart 7" large-screen display, fault and status information display for
    easy viewing of machine status and fault diagnosis, parameters and
    settings
Dimensions

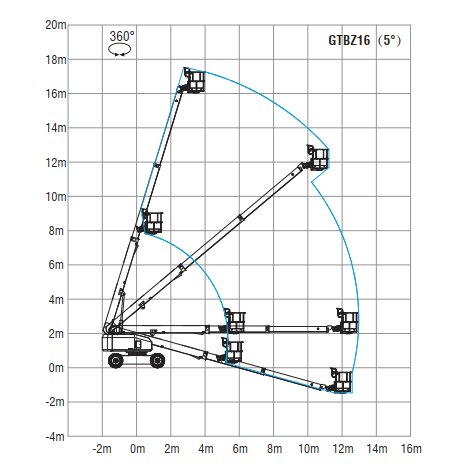

  • Max Platform Height

    16.1m (52'10")

  • Max Working Height

    18.1m (59'5")

  • Max Horizontal Extension

    12.9m (42'4")

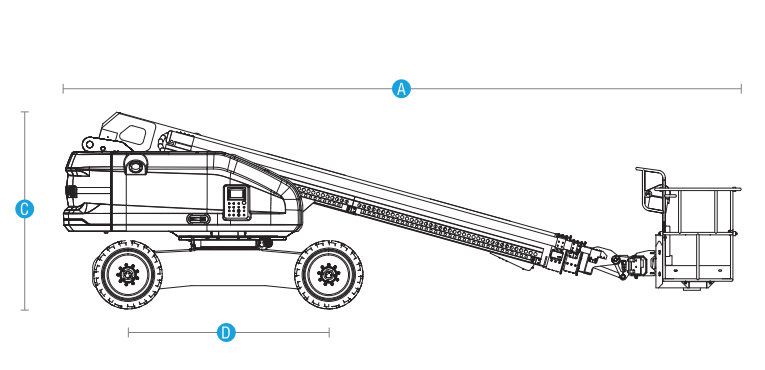

  • [A] Length-Stowed

    8.23m (27')

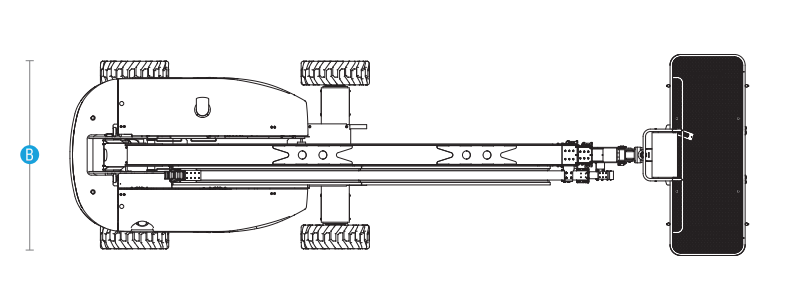

  • [B] Width

    2.28m (7'6")

  • [C] Height-Stowed

    2.43m (95.6")

  • [D] Wheelbase

    2.44m (8')

  • Ground Clearance

    0.23m (9")

  • Platform Dimensions(L×W×H)

    1.83×0.85×1.1m (72×33.5×43")
Performance

  • Platform Capacity
    (Unrestricted)

    340kg (750lbs)

  • Platform Capacity
    (restricted)

    -

  • Turntable Rotation

    360° continuous

  • Platform Rotation

    160°

  • Drive Speed-Stowed

    6km/h (3.7mph)

  • Drive Speed-Raised

    1.1 km/h (0.68mph)

  • Gradeability

    45% (4WD)

  • Turning Radius-Inside

    3.48m (11'5")

  • Turning Radius-Outside

    6.29m (20'8")

  • Turntable Tailswing

    0.86m (2'10")

  • Tilt Rating

    5°

  • Max Operating Noise Level

    82dB(A)

  • Drive×Steer

    4WDx2WS

  • Tyres-solid

    33×12-20/Solid
Power

  • Power Source (Optional)

    Perkins 404D-22, 35.7kW, EU Stage 3A/EPA Tier 3

  • Auxiliary Power Unit

    12V DC

  • Fuel Tank Capacity-Diesel

    110L (24.2gal)

  • Hydraulic Tank Capacity

    110L (24.2gal)


  • Weight

    10,270kg(4WD) / 22,641lb(4WD)

  • Standards Compliance

    CE
Download Brochures
Standard features
  • Platform hydraulic leveling
  • 7-inch screen
  • Dual-speed drive motor
  • Platform 160° hydraulic rotation
  • Fault diagnosis system
  • Diverged/converged anti-slip system
  • Drive enable system
  • Swing-out engine
  • Patented anti-slip
  • 3 joysticks with variable proportional control
  • Engine restart protection
  • 4-wheel brake
  • Automotive style all tube protection
  • Engine malfunction automatic shutdown
  • Emergency brake release
  • Horn and buzzer alarms
  • Engine preheating
  • 4WD
  • Rotating warning lamp
  • Emergency stop system
  • Outrigger oscillating axle
  • Tilt protection
  • Emergency lowering system
  • 360°continuous turntable rotation
  • Overload sensing system
  • Max allowable inclination up to 5°
Optional features
  • Optional 1.45m(4'9") work platform
  • Optional 2.44m(8')work platform
  • AC cable to platform
  • Hydraulic generator(3.5kW)
  • Headlight
  • Overhead anti-collision device
  • Outrigger without oscillating axle
