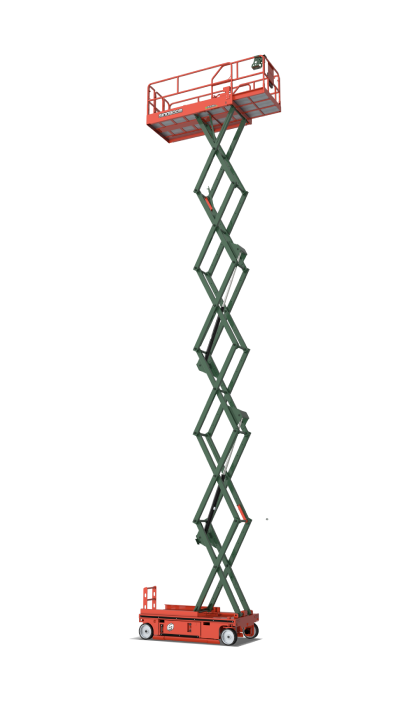

GTJZ1414 Plus (4655 Plus)

Hydraulic Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • More reliable performance

    ■ Battery voltage early warning to ensure battery life
    ■ Bumper rail protection
    ■ Pothole protection reporting and horizontal protection system give peace of mind during operation

  • Reduced maintenance costs

    ■ Double-door design for easy maintenance
    ■ Troubleshooting for quick fault diagnosis
    ■ Highly quality parts and components

  • Flexible operation

    ■ Small turning radius, flexible operation in narrow spaces
    ■ Standard forklift slot for efficient equipment transportation
    ■ Folding guardrails for easy transport

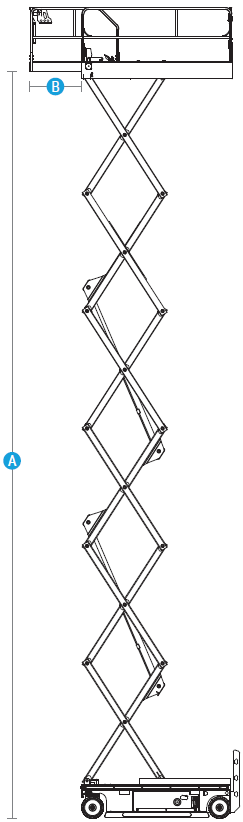

Dimensions

  • Max Working Height

    15.8m (51'10") (Indoor) / 10.5m (34'5.4") (Outdoor)

  • [A] Max Platform Height

    13.8m (45'3") (Outdoor) / 8.5m (27'10.6") (Indoor)

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.78m (9')

  • [D] Width-Stowed

    1.41m (4'7")

  • Height - stowed (Rail Folded)

    1.98m (6'6")

  • [E] Height - stowed
    (Rail Unfolded)

    2.60m (8'6")

  • [F] Wheelbase

    2.22m (7'3")

  • Ground Clearance

    Pothole Guard Stowed: 0.95m (3.74")
    Pothole Guard Deployed: 0.025m (0.98")

  • Platform Dimensions(L×W×H)

    2.64m×1.3m×1.1m (8'8"×4'3"×3'7")
Performance

  • Platform Allowable Occupants
    （Indoor/Outdoor）

    2 persons/1 persons

  • Platform Capacity

    350kg (772lbs)

  • Drive Speed-Stowed

    3.2km/h (2mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Elevation Time
    (Unloaded)

    75s~85s

  • Descent Time
    (Unloaded)

    55s~63s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/2.64m (0/2.64m)

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5")
Power

  • Batteries

    24V,280Ah (lead acid battery)
    25.6V/200Ah (lithium battery)

  • Power Source

    24V DC

  • Drive Mode

    2WD×2WS

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    15L (3.3 UK gal / 4 US gal)


  • Weight(Indoor/Outdoor)

    3,560kg (7,848lbs)

  • Weight(Indoor Only)

    -

  • Standards Compliance

    CE/ANSI/CSA/KCS/EAC
Download Brochures
Standard features
  • Maintenance-free battery
  • Automatic braking system
  • Drive at full height
  • Proportional control
  • Emergency lowering system
  • Forklift pocket and lifting points
  • Bumper rail
  • Emergency stop at both platform and ground controls
  • Electrophoretic coating
  • 2WD×2WS
  • Fault diagnosis system
  • Foldable guardrail
  • Non-marking tires
  • Tilt protection
  • Overload sensing system
  • PCU bracket
  • Automatic pothole guard
Optional features
  • Overhead anti-collision device
  • Headlight
  • RCBO
  • AC power to platform
  • Foot switch
