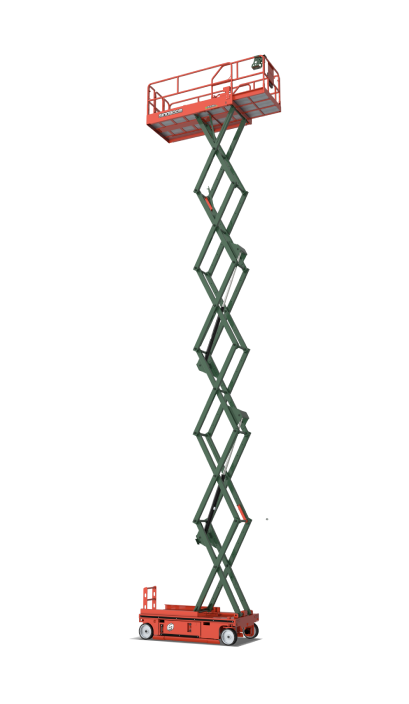

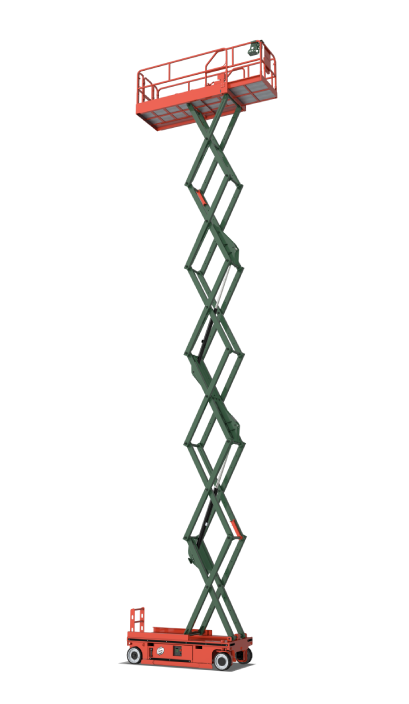

GTJZ1212(4047)

Hydraulic Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Product Highlights

  • More reliable performance

    ■ Battery voltage early warning to ensure battery life
    ■ Bumper rail protection
    ■ Pothole protection reporting and horizontal protection system give peace of mind during operation

  • Reduced maintenance costs

    ■ Double-door design for easy maintenance
    ■ Troubleshooting for quick fault diagnosis
    ■ Highly quality parts and components

  • Flexible operation

    ■ Small turning radius, flexible operation in narrow spaces
    ■ Standard forklift slot for efficient equipment transportation
    ■ Folding guardrails for easy transport
Dimensions

  • Max Working Height

    13.9m (45'7")

  • [A] Max Platform Height

    11.9m (39')

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.39m (7'10")

  • [D] Width-Stowed

    1.15m (3'9")

  • Height - stowed (Rail Folded)

    1.98m (6'6")

  • [E] Height - stowed
    (Rail Unfolded)

    2.60m (8'6")

  • [F] Wheelbase

    1.85m (6'1")

  • Ground Clearance

    0.1m (4")

  • Platform Dimensions(L×W×H)

    2.25m×1.15m×1.1m (7'5"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    （Indoor/Outdoor）

    2 persons/1 persons

  • Platform Capacity

    320kg (705.6 lbs)

  • Drive Speed-Stowed

    3.2km/h (2mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Elevation Time
    (Unloaded)

    63s~68s

  • Descent Time
    (Unloaded)

    44s~49s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/2.35m (0/7'8.5")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5")
Power

  • Batteries

    12V×4/300Ah

  • Power Source

    24V DC

  • Drive Mode

    2WD, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    25A

  • Brake

    2 rear wheel

  • Hydraulic System Capacity

    35L (7.7gal )


  • Weight(Indoor/Outdoor)

    2,900kg (6,394.5lbs)

  • Weight(Indoor Only)

    2,615kg (5,766lbs)

  • Standards Compliance

    ISO/CE/ANSI/CSA/AS/CU-TR/KCS
Download Brochures
Standard features
  • Maintenance-free battery
  • Automatic braking system
  • Drive at full height
  • Proportional control
  • Emergency lowering system
  • Forklift pocket and lifting eyes
  • Bumper rail
  • Emergency stop at both platform and ground controls
  • Electrophoresic painting technology
  • 4×2 drive
  • Fault diagnosis system
  • Foldable guardrail
  • Non-marking tyres
  • Tilt protection
  • Overload sensing system
  • Integrated hand shield
  • Automatic pothole guard
Optional features
  • Overhead anti-collision device
  • Headlight
  • RCBO
  • AC power to platform
