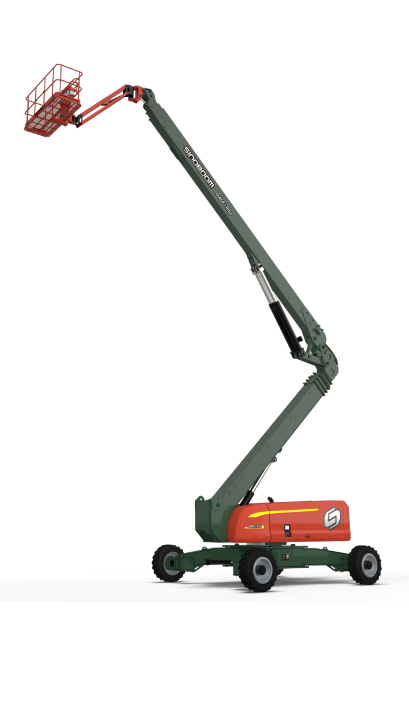

AB46RJ (AB1530RJ)
Engine Powered Articulated Boom Lifts
-
Working Heightm
-
Platform Capacitykg
-
Gradeability%
- SPECIFICATIONS
- Standard/Optional
- APPLICATIONS
Dimensions
-
Max Platform Height
46.6m (152'11") -
Max Working Height
48.6m (159'5") -
Max Horizontal Extension
25.5m (83'8") -
[A] Length-Stowed
15m (49'3") -

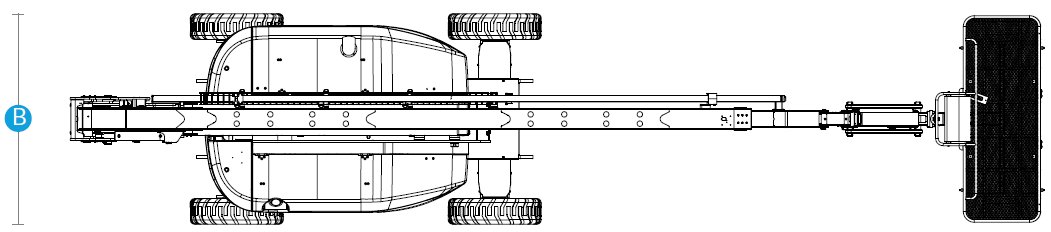

[B] Width-Stowed
2.49m (8'2") -
[C] Height-Stowed
3.2m (10'6") -
[D] Wheelbase
5.2m (17'1") -
Ground Clearance
0.33m (1'1") -
Platform Dimensions(L×W×H)
2.44x0.91x1.1m (8'x3'x3'7")
Performance
-
Platform Capacity
(Unrestricted/2 Persons)275kg (606lbs) -
Turntable Rotation
360° continuous -
Platform Rotation
180° -
Drive Speed-Stowed
4.5km/h (2.8mph) -
Drive Speed-Raised
0.48km/h (0.3mph) -
Gradeability
40% -
Turning Radius-Inside
7.1m (23'4") -
Turning Radius-Outside
9.52m (31'3") -
Turntable Tailswing
4.6 m (15'1") -
Tilt Rating
5° -
Max Operating Noise Level
-
Drive×Steer
4WDx4WS -
Tyres Spec/Type
445/50D710 24PR (foam- filled)
Power
-
Power source(optional)
Cummins QSF3.8t3TC99/ EU Stage 3A -
Auxiliary Power Unit
12 VDC -
Fuel Tank Capacity-Diesel
200L (44 gal (UK) / 53 gal (US)) -
Hydraulic Tank Capacity
410L (90 gal (UK) / 108 gal (US))
-
Weight
27,300kg (60,186lbs) 4WD -
Standards Compliance
EAC
Standard features
- 7-in display screen
- 4WD x 2WS
- Proportional control with 3 joysticks
- Automotive-grade sleeves for all pipes
- 4-wheel brake
- Hydraulic platform levelling
- Weighing system
- Tilt protection system
- Max tilt rating to 5°
- Emergency stop system
- Flashing beacon
- Horn & buzzer
- Emergency lowering system
- Footswitch
- 2.44m(8') platform
- Fault diagnosis system
- Foam-filled non-marking tires
- Manual storage box
Optional features
- AC power to the platform
- Solid tires
- 1.83m(6') work platform
- 1.83m(8')/2.44m(8') platform with swinging gate
- Platform work light
- Anti-crush device
- Overhead anti-collision device
- Glazier kit (for platform with swinging gate)
- Trackunit
- Half mesh (for platform with swinging gate)
