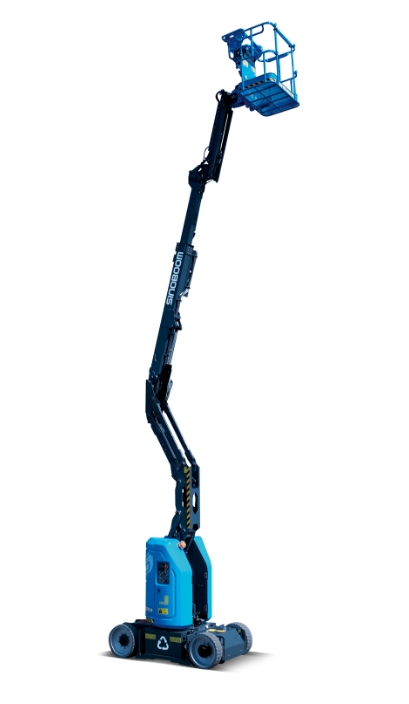

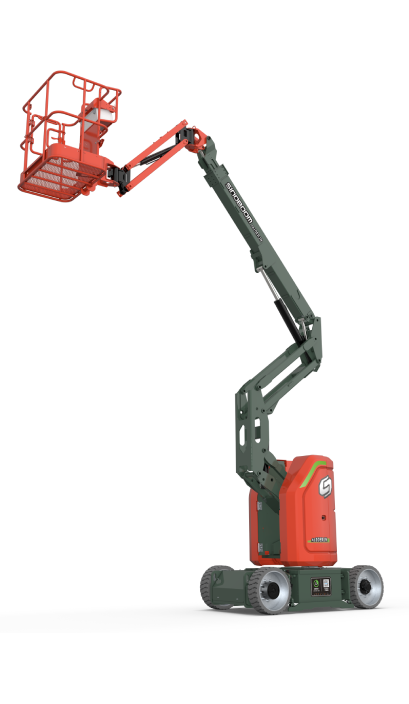

AB10ERJN (AB320ERJN)

Electric Articulated Boom Lifts

Working Height

11.62m

Platform Capacity

230kg

Gradeability

35%

Get a Quote

Download Brochures

SPECIFICATIONS
Standard/Optional
APPLICATIONS

Dimensions

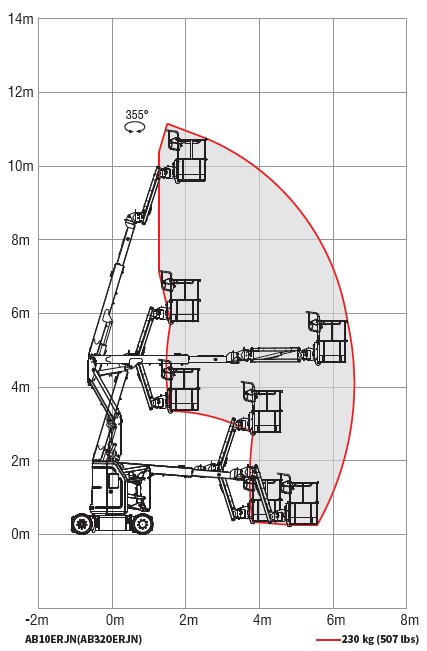

Max Platform Height

9.62m (31'7")
Max Working Height

11.62m (38'1")
Max Horizontal Extension

6.3m (20'8")

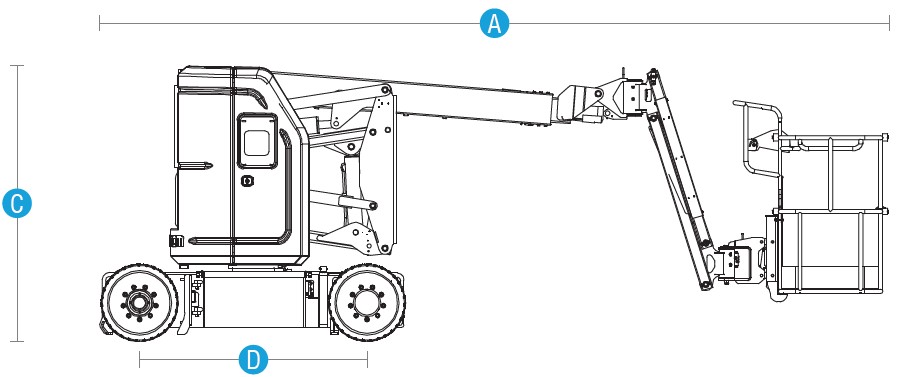

[A] Length-Stowed

5.72m (18'9")

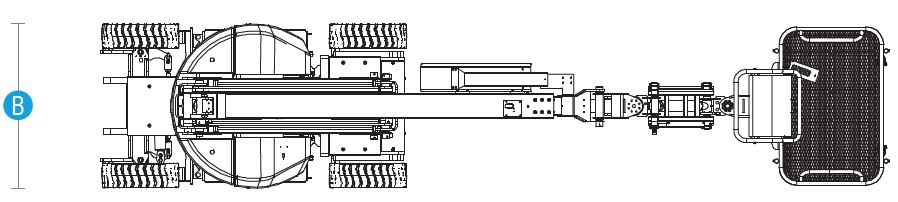

[B] Width-Stowed

1.19m (3'11")
[C] Height-Stowed

1.99m (6'6")
[D] Wheelbase

1.65m (5'5")
Ground Clearance

0.075m / 0.02m (2.95" / 0.8") (pothole guard stowed / deployed)
Platform Dimensions
(L×W×H)

1.15m×0.76m×1.1m (45.3"×30"×43.3")

Performance

Platform Capacity
(Unrestricted/2 Persons)

230kg (507lbs)
Turntable Rotation

355° non-continuous
Platform Rotation

180°
Drive Speed-Stowed

0~5 km/h (0~3.1 mph)
Drive Speed-Raised

0~0.8 km/h (0~0.5 mph)
Gradeability

35％
Turning Radius-Inside

1.7m (5'7")
Turning Radius-Outside

3.25m (10'8")
Turntable Tailswing

0m (0')
Tilt Rating

3°
Drive×Steer

2WD × 2WS
Tyres Spec/Type

22×7×17.75'' (Solid non-marking)

Power

Batteries

48 V, 330 Ah (AGM, lead acid battery)
Auxiliary Power Unit

12V DC
Hydraulic Tank Capacity

20L (4.4 gal (UK) / 5.3 gal (US))

Weight

6,760 kg(14,903 lbs)
Standards Compliance

CE/ANSI/CSA/EAC

Download Brochures

Standard features

Hydraulic platform leveling
5-in display screen
2WD × 2WS
Proportional control
Automotive-grade sleeves for all pipes
Emergency lowering system
Manual storage box
Max tilt rating to 3°
Weighing system
Tilt protection system
Horn & buzzer
Emergency stop system
Flashing beacon
Footswitch
Fault diagnosis system
Solid non-marking tires

Optional features

AC power to platform
Secondary guarding device
Platform work light
Overhead anti-collision device
Telematics-ready connector
