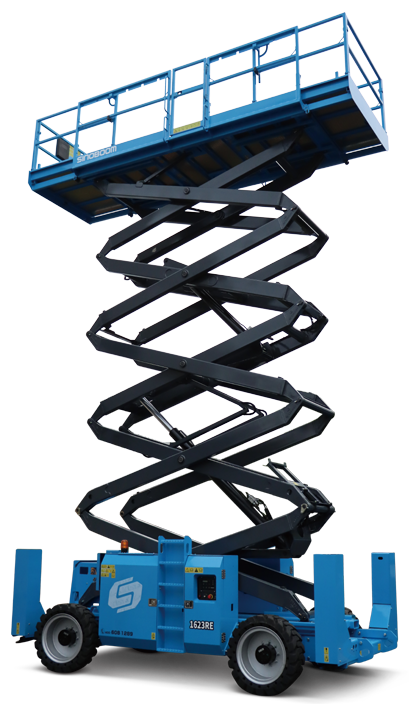

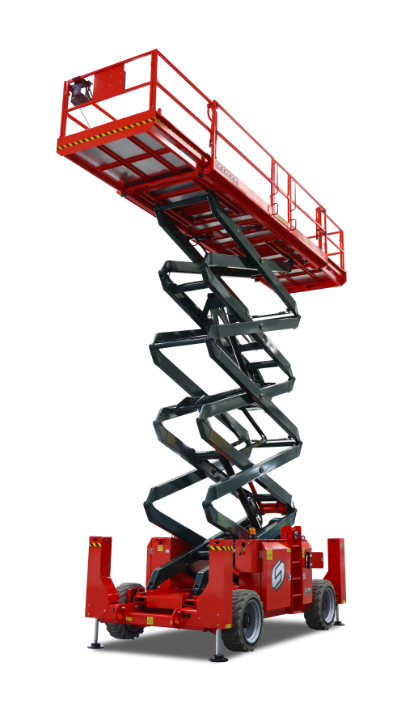

GTJZ1623RE (5389RE)

Rough Terrain Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    18.2m (59'8.5")

  • [A] Max Platform Height

    16.2m (53'2")

  • [B] Max Horizontal Extension

    1.5m/1.2m (4'11"/3'11")

  • [C] Length-Stowed
    (Outriggers/Without Outriggers)

    4.88m (16')

  • [D] Width-Stowed

    2.28m (7'6")

  • Height - stowed (Rail Folded)

    2.44m (8')

  • [E] Height - stowed
    (Rail Unfolded)

    3.21m (10'6")

  • [F] Wheelbase

    2.84m (9'4)

  • Ground Clearance

    0.36m (14")

  • Platform Dimensions(L×W×H)

    3.96m×1.82m×1.1m (13'×6'×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor)

    4 Persons

  • Platform Allowable Occupants
    (Outdoor)

    4 Persons

  • Platform Capacity

    680kg (1,499lbs)

  • Drive Speed-Stowed

    5.3km/h (3.3mph)

  • Drive Speed-Raised

    1.1km/h (0.68mph)

  • Elevation Time
    (Unloaded)

    70s~90s

  • Descent Time
    (Unloaded)

    60s~70s

  • Gradeability

    40%

  • Turning Radius
    (Inside/Outside)

    2.2m/5.3m (7'3"/17'5")

  • Tilt Rating
    (Front to Back)

    3°

  • Tilt Rating
    (Side to Side, Outrigger Tele-In/Tele-Out)

    2°/0.8°

  • Max Outrigger Leveling
    (Front to Back)

    7°

  • Max Outrigger Leveling
    (Side to Side)

    12°

  • Tyres-solid

    33x12-20
Power

  • Power Source

    48 V, 480 Ah

  • Drive Mode

    12V DC

  • Fuel Tank Capacity - Diesel

    -

  • Hydraulic System Capacity

    110L (24 UK gal / 29 US gal)


  • Weight
    (Outriggers/Without Outriggers)

    9,250kg (20,392lbs)

  • Standards Compliance

    -
Download Brochures
Standard features
  • 2WDX2WS
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency lowering system
  • Emergency stop
  • Electrophoretic painting
  • Tilt protection system
  • Foam-filled non-marking tires
  • Foldable guardrail
  • Auto braking system
  • Overload sensing system
  • Oscillating axle
  • Fault diagnosis system
  • Horn & buzzer
  • Drivable at full height
Optional features
  • AC power to platform
  • Platform work light
  • Overhead anti-collision device
  • Telematics-ready connector
  • 7.4m platform
