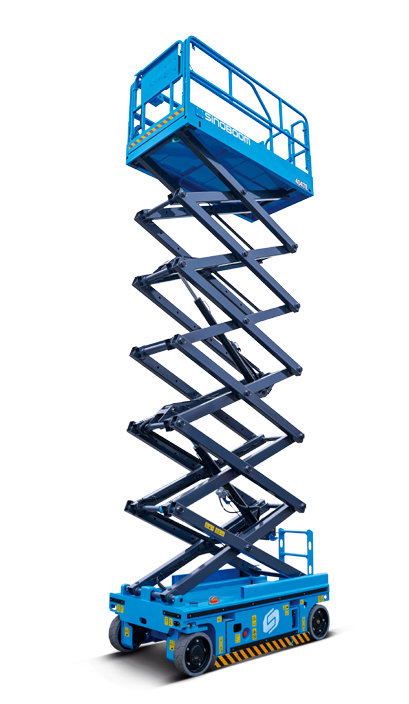

GTJZ1212E(4047E)

Electric Series Scissor Lifts
Working Height
m
Platform Capacity
kg
Gradeability
%
Get a Quote
Download Brochures
share
  • SPECIFICATIONS
  • Standard/Optional
  • APPLICATIONS
Dimensions

  • Max Working Height

    Indoor: 13.9m Outdoor: 11m (Indoor: 45'7" Outdoor: 36')

  • [A] Max Platform Height

    Indoor: 11.9m Outdoor: 9m (Indoor: 39' Outdoor: 29'5")

  • [B] Max Horizontal Extension

    0.9m (3')

  • [C] Length-Stowed

    2.45m (8')

  • [D] Width-Stowed

    1.17m (3'10")

  • Height - stowed Rail Folded

    1.98m (6'6")

  • [E] Height - stowed Rail Unfolded

    2.6m (8'6")

  • Height - stowed Fixed Rail

  • [F] Wheelbase

    1.88m (6'2")

  • Ground Clearance
    (Pothole Guard Stowed)

    0.1m (4")

  • Ground Clearance
    (Pothole Guard Deployed)

    25mm (0.98")

  • Platform Dimensions(L×W×H)

    2.30m×1.15m×1.1m (7'6.5"×3'9"×3'7")
Performance

  • Platform Allowable Occupants
    (Indoor/Outdoor)

    Indoors: 2 persons Outdoors: 1 person (outside working height 9m)

  • Platform capacity

    320kg (705.6lbs)

  • Lift Extension Capacity

  • Drive Speed-Stowed

    4km/h (2.5mph)

  • Drive Speed-Raised

    0.8km/h (0.5mph)

  • Elevation Time(Unloaded)

    63s~68s

  • Descent Time(Unloaded)

    44s~49s

  • Gradeability

    25%

  • Turning Radius
    (Inside/Outside)

    0/2.35m (0/7'8.5")

  • Tilt Rating
    (Front to Back/Side to Side)

    3°/1.5°

  • Tyres-solid

    380×125mm (15×5")
Power

  • Batteries

    12V×4/300Ah

  • Power Source

    24V DC

  • Drive Mode

    Motor, front-wheel

  • Charger Input

    100~240V AC

  • Charger Output

    30A

  • Hydraulic System Capacity

    34L (7.5gal)


  • Weight(Indoor/Outdoor)

    3,210kg (7,077lbs)

  • Weight(Indoor Only)

    3,100kg (6,834lbs)

  • Standards Compliance

    ISO/CE/ANSI/CSA/AS/CU-TR/KCS
Download Brochures
Standard features
  • Maintenance-free battery
  • Automatic braking system
  • Drive at full height
  • Proportional control
  • Emergency lowering system
  • Forklift pocket and lifting eyes
  • Bumper rail
  • Emergency stop at both platform and ground controls
  • Electrophoresic paint technology
  • 4×2 drive
  • Fault diagnosis system
  • Foldable guardrail
  • Non-marking tyres
  • Tilt protection
  • Overload sensing system
  • Integrated hand shield
  • Automatic pothole guard
Optional features
  • Overhead anti-collision device
  • Headlight
  • RCBO
  • AC power to platform
